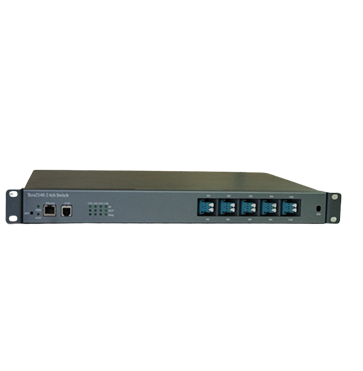

Tera2040-2 2ch 1:4 optical Switch

Tera2040-2 2ch 1:4 optical Switch

BASIC INFO

Description

The Tera2140-2 is 1~2 channel 1:4 single mode or multimode optical switch, mainly for optical transmission protection, also could be integrated Auto-test platform for manufacture,1U standard box.

       ?  220V Power or DC Power(Optional);

                   ?  2 Channel 1:4 optical switch channel;

                   ?  Support single-mode and multi-mode;

                   ?  Remote control by compute.


Power meter parameter

           parameter

Min

Typical

Max

Unit

Note

Wavelength Range

1260



1650

nm



Insertion Loss 1, 2



0.8



dB



Return Loss 1, 2

50





dB

Wi connector

Crosstalk 1

55





dB

15dB

PDL



≤0.05

dB

15dB

WDL



≤0.25

dB



Repeatability



≤±0.02

dB



Durability

≥ 10 Million





Cycles



Switching Time



≤8



ms



Optical Power



10



W



Operating Temperature



-20 ~ +70





Storage Temperature



-40 ~ +85





Humility

5



90

%

Non-Condensing

Weight



5



Kg



Size

(L)27.0×(W)12.6×(H)8.2 ±0.2

mm
