Description

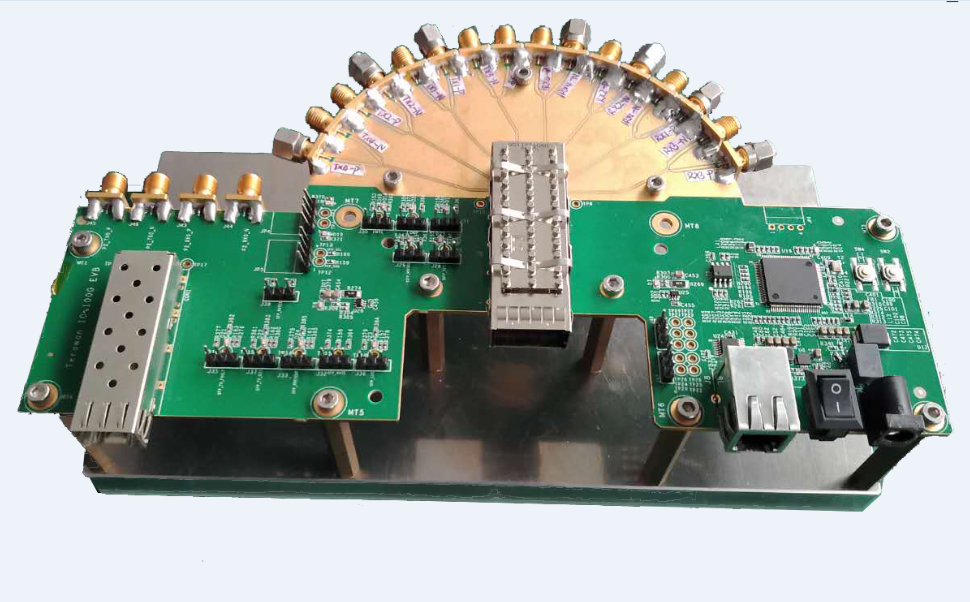

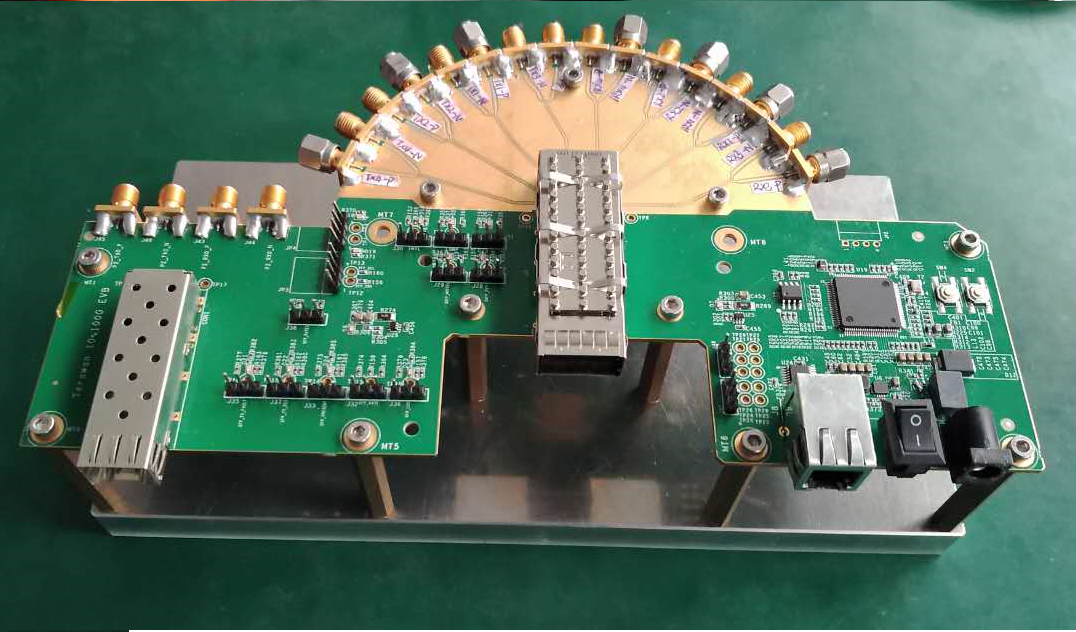

The Tera2101 is test board for 10G/25G/40G/100G optical module，could support 2 port optical module test: 1st is 40G/100G QSFP+/QSFP28 optical transceiver, 2nd port is for 10G/25G SFP+/ SFP28 optical transceiver (also support 100M/1G/2.5G/6G SFP module)
Every RF interface could support 100M/1G/10G/11G/12G/14G/22G /24.3G/25.7G/28.05Gb/s, mainly for 10GE/16GFC/25GE/40GE/CPRI/100GE/128GFC transceiver/AOC test, could work with BERT Tera2100 to test 10G/25G module。
Main feature:
? 6~9V DC, GUI could monitor the power range good or bad
? Board temperature monitor
? The 3.3V power supply for optical module could be adjustable(3.1V~3.47V);
? RF interface is K connector(2.92)，compliant with SMA connector;
? Support Re-program transceiver EEPROM
Tera2101 RF interface
|
Parameter |
Min |
Typical |
max |
Unit |
Note |
|
Datarate |
DC |
|
30 |
Gb/s |
|
|
DC Power |
6 |
8.5 |
9 |
V(DC) |
|
|
Power dissipation |
|
|
2 |
W |
|
|
Work temperature |
-45 |
|
85 |
oC |
|
|
Storge temperature |
-10 |
|
70 |
oC |
|
|
Humidity |
5 |
|
90 |
% |
Non-Condensing |
|
RF Interface |
K（2.92mm），compatible with SMA |
|
|||
GUI

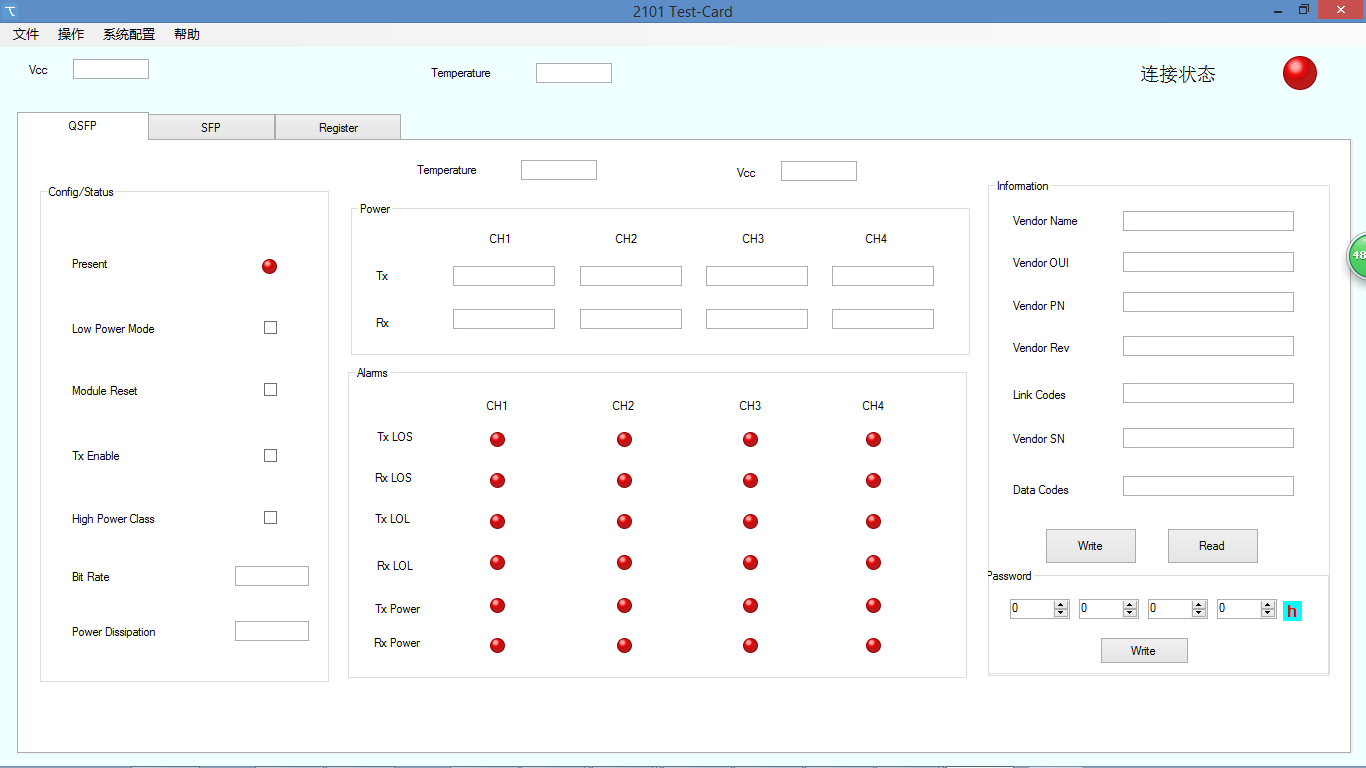

The EVB could be control by the console interface, GUI is as following：
